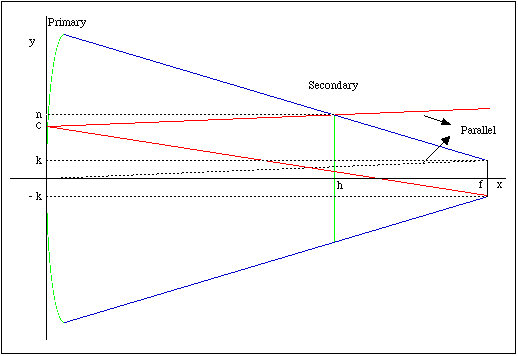

Only the minor axis of the secondary is shown. The black line at the focal point "f" represents the unaffected area and is in this case equal to the fully illuminated area. The red line shows the path of a light ray coming from an object at the edge of the unaffected area.
